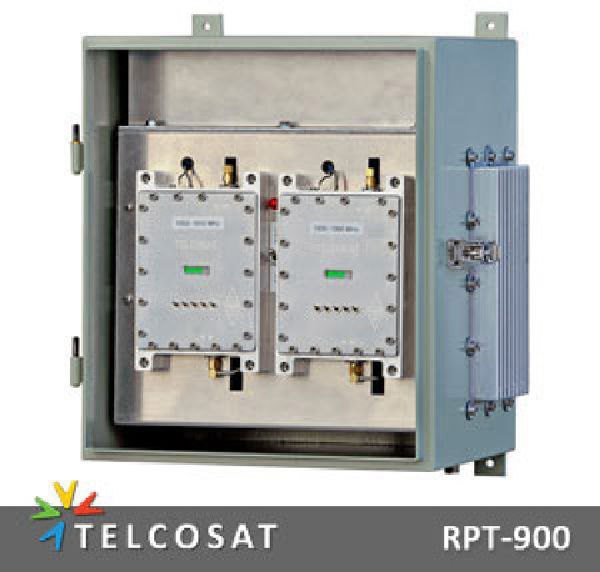

Working as part of a Distributed Antenna System (DAS) the range, power and performance of the Telcosat RPT-900 800MHz Band
Cell Phone Signal Repeater is unsurpassed when comparing the technical specifications and prices against the competitors products.
Telcosat repeaters are quick and easy to install - no complicated computer hook up to set the gain and antenna alignment. Simply align the antenna to the cell tower by using the visual LED signal meter built into the repeater and adjust your repeater to the minimum power level required.
Technical support, warranty and all repairs are available in Calgary, Alberta, Canada.
Our design team configured the Telcosat repeaters using a modular concept. This means the major components such as the power amplifiers and the uplink / downlink up-converter boards are individual components. Each separate PCB board is gold flashed and housed in an rugged case that is machined from a solid block of aluminum.
Like all Telcosat products, the RPT-900 is designed and manufactured in Canada.
If you have any questions regarding cellular repeater applications indoors or outdoors, please contact us today and a member of our design team would be pleased to assist you.
Frequency Range- 824 - 849 MHz (Uplink), 869 - 894 MHz (Downlink)
Passband Gain - 95 dB
Pass Band Ripple - Â± 2.5 dB
Channel Ripple - 0.5 dB
Max Absolute Delay - less than 2 Âµs Rx
Noise Figure @ Max Gain- 3.7 dB Typical
IMD 2 Tone - 43 dBc Typical @ Max Power
Max Power Output - 30 dBm RMS
EVM - less than 3%
Max SWR (In / Out) - 1.5 : 1
Manual Gain Control - 50 dB in 2dB Steps
Spurious Outputs - 55 dBc
Max Power Supply - 28 VDC @ 55 W, 90 - 260 VAC
Operating Temperature - -30ÂºC to +60ÂºC
RF Connectors - 50 Ohm N Type, Female
Unit Size - 14.5" x 16.5" x 11.5", 36 x 41 x 29 cm
Weight - 48 lbs, 23 kg Typical
Enclosure Type - Nema 4A, 12
FCC and Industry Canada Certified
