Bias T (Bias Tee) DC Injector,
10MHz to 3GHz, 32V.

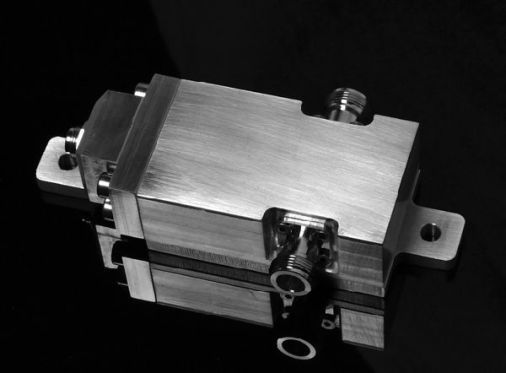

Our Waterproof N Bias T design is rated for a minimum frequency of 10 MHz (will pass DC for satellite controllers) and a maximum frequency of 3 GHz. All RF connectors are 50 Ohm N Female. This radio frequency wideband Bias T is manufactured to be rated for a maximum DC voltage of 32 Volts and a maximum current between 1A to 4A depending on the model selected.

In-line current limitation protects against current overload due to short circuits.

The PCB board is housed in a rugged case that is machined from a solid block of aluminum.

The physical design of the Bias T is extremely rugged and durable and would easily meet military grade standards. Able to withstand wide extremes of temperature a Telcosat Bias Tee is ideal for designs where low cost, high quality, space limitation, and outdoor all weather environments are critical.

Like all Telcosat products, the N Bias T is designed and manufactured in Canada.

If you have any questions regarding applications, please contact us today and a member of our design team would be pleased to assist you.

Bias T (Tee) Technical Specifications
Military Grade Design

Frequency Range: 10MHz - 3GHz
Input Power: 32 Vdc
Input Current Ranges:
* Model Bias T NF/NF-1: 1A
* Model Bias T NF/NF-2: 2A
* Model Bias T NF/NF-3: 3A
* Model Bias T NF/NF-4: 4A
Current Limiting
Operating Temperature: -40ºC to +60ºC
RF Connectors: - 50 Ohm N Type, Female
Length: 14cm
Width: 5cm
Height: 3cm
Weight: 430g
Enclosure Type: Machined Aluminum
Environmental: To IP68 (Waterproof)
